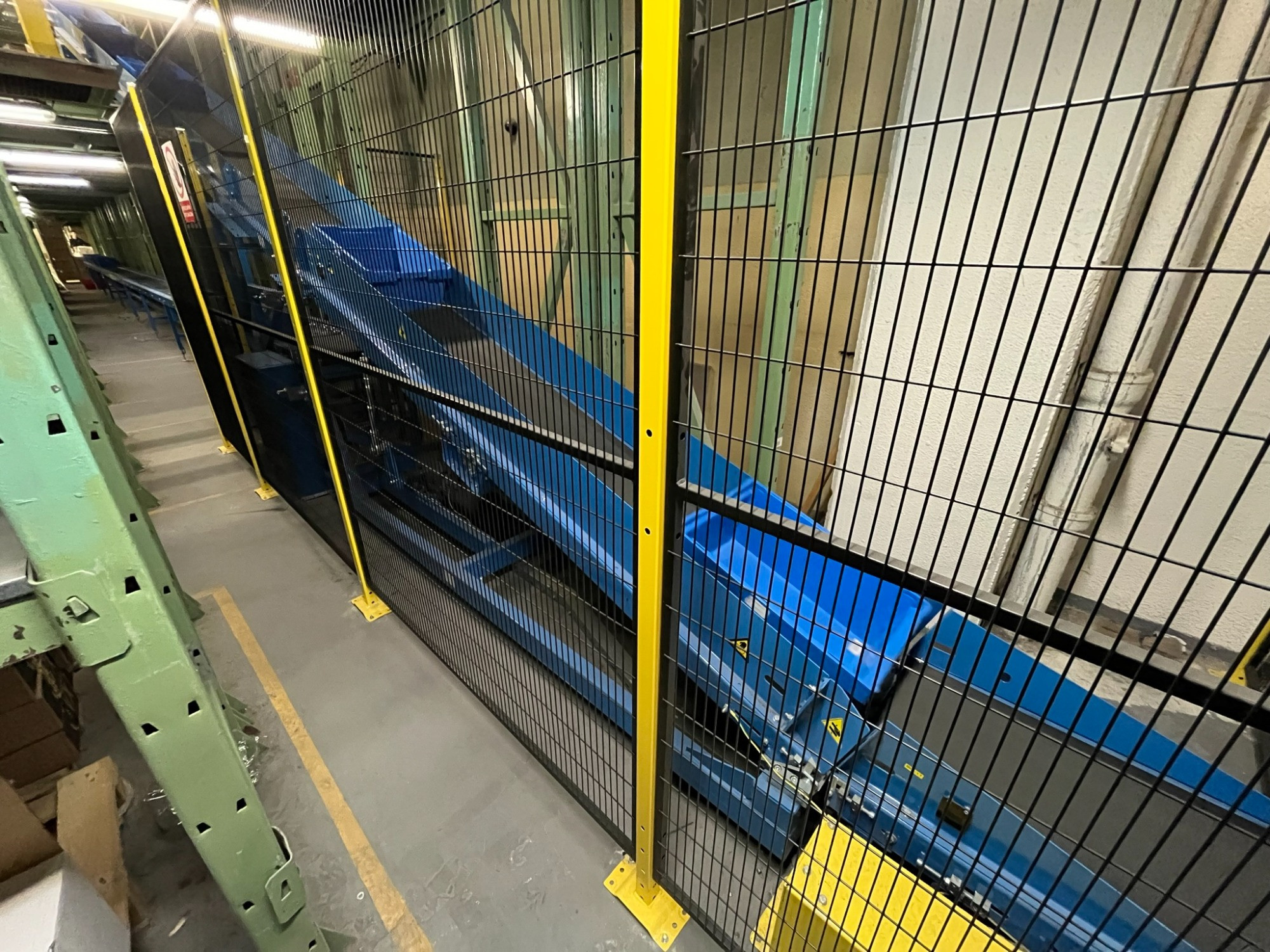

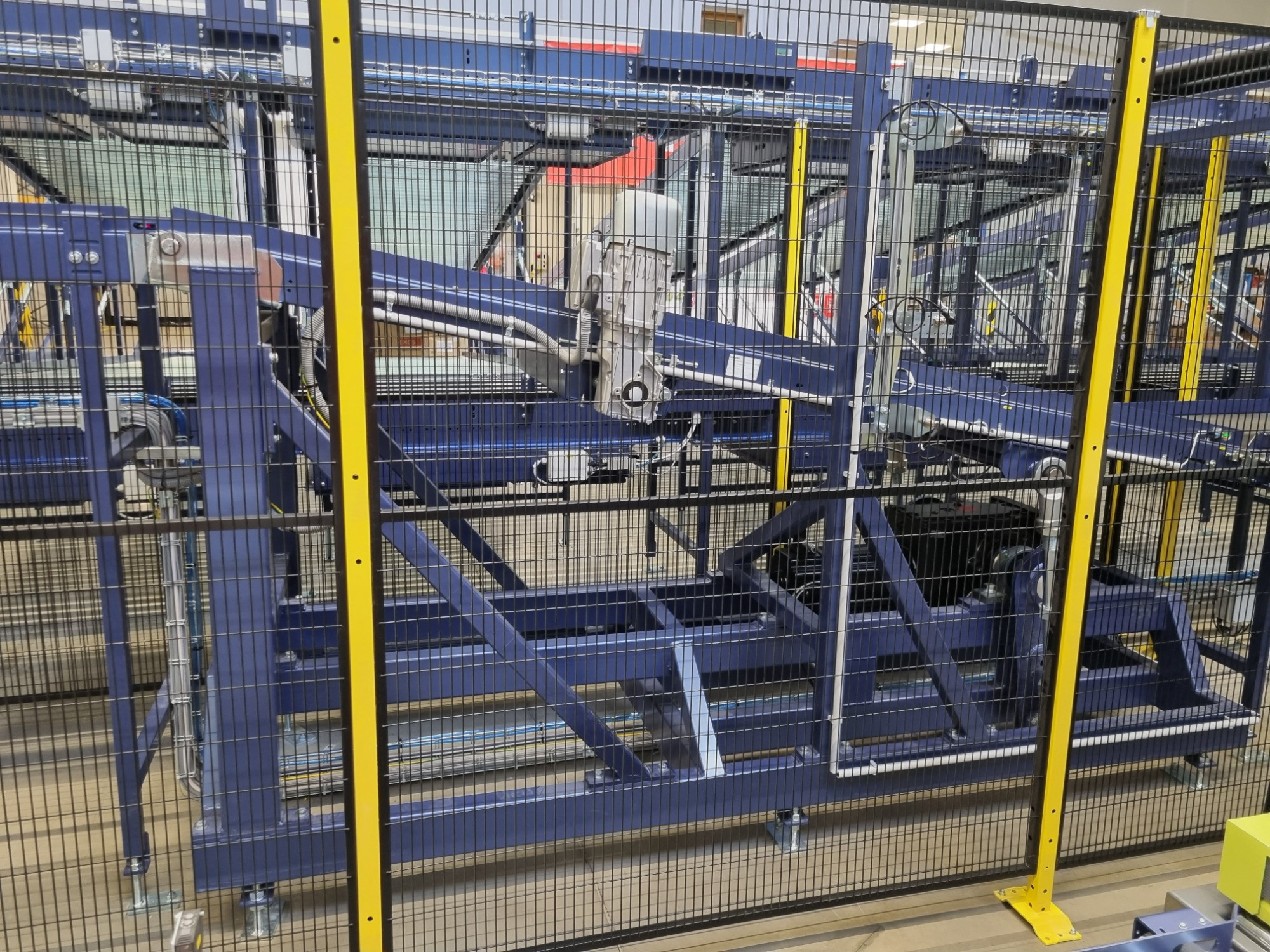

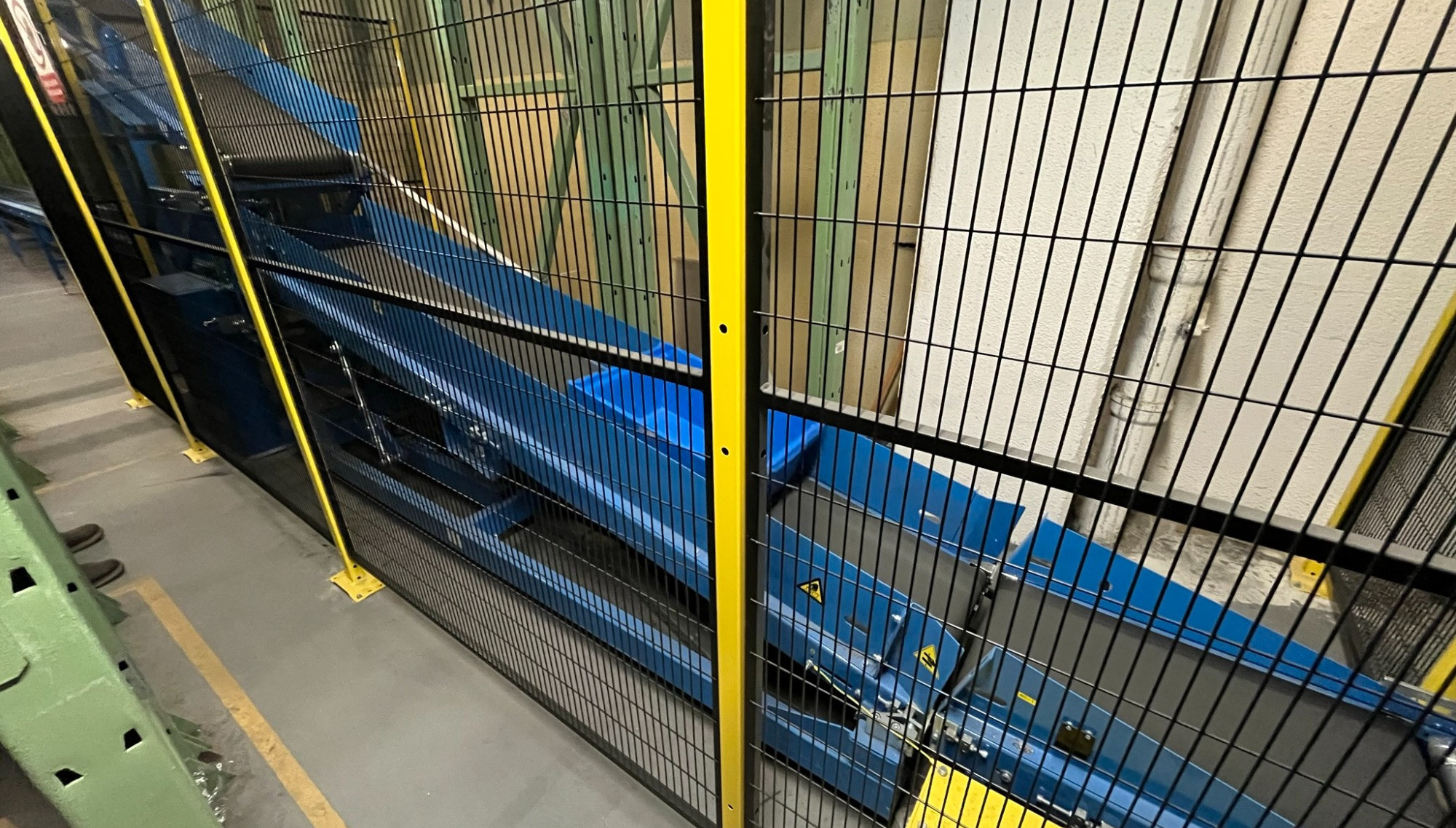

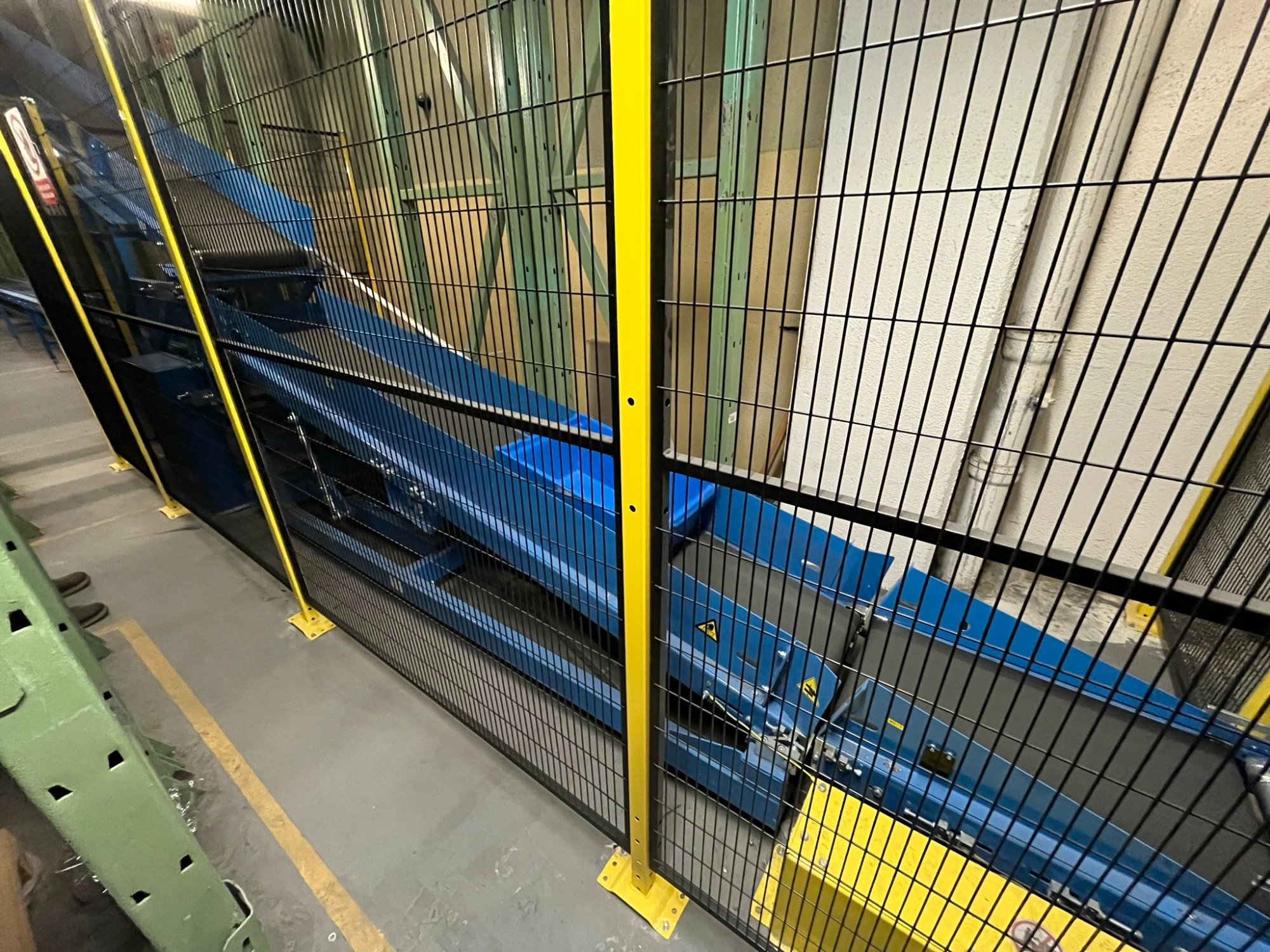

Vertical sorter - schwenkbar
The core of the system is a pivot-mounted belt conveyor that optimally divides material into two elevation levels or combines two elevation levels into one. This automatic conveyor provides a flexible and reliable solution for material handling in the vertical direction. The vertical movement is provided either electromechanically or pneumatically, allowing for precise and energy-efficient operation.
Conveyors of this type are ideal for applications where it is necessary to optimize space and efficiently transport materials between different elevation levels. Automation of this process increases efficiency and control over material handling, leading to lower costs and higher productivity.
Our references
Areas of application
FAQs
The Schwenkbar vertical sorter is a tilting sorter with a pivoting belt conveyor that divides material between two or more height levels or, conversely, merges flows into a single level. It is used wherever the direction of goods between different conveyor heights needs to be controlled automatically while saving floor space. It is suitable for distribution centres and industrial operations where it connects to surrounding conveyor technology.
The Schwenkbar tilting sorter works by pivoting the entire belt segment, thereby redirecting material between two height levels. This distinguishes it from sorters that divert goods sideways within a single plane. If you need lateral diversion or item rejection, see the other options in the sorting section. The choice of a specific type is always based on the line layout and required direction of flow.
Vertical movement of the sorter is provided by either an electromechanical or pneumatic drive. The electromechanical version offers precise and energy-efficient positioning, while the pneumatic version is suitable where a compressed-air supply is available. We recommend the specific option according to the line cycle, characteristics of the transported goods and the required switching speed between levels.
The capacity and load rating of the vertical sorter depend on the specific design and the required performance of your line. We design the machine to order according to the weight and dimensions of the transported items, required cycle time and frequency of switching between height levels. When making an enquiry, tell us the type of goods and target throughput and we will design suitable belt, drive and frame parameters.
Yes, we design the Schwenkbar vertical sorter to connect to the surrounding conveyor technology and your line control system. As a Czech manufacturer and integrator, we handle design, manufacturing, installation and service, so the machine is adapted both dimensionally and in terms of control signals to the specific operation. It can be connected to belt, roller and other conveyors according to your route layout.
