Flexible conveyors

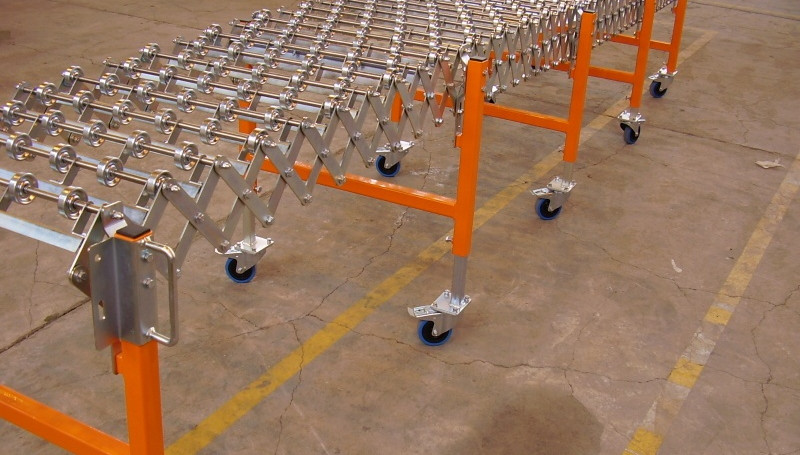

It is a gravity conveyor, commonly used as a standalone solution, though it can also be part of a conveyor system. It is used for the transport of unit goods (such as crates, cartons, etc.).
A major advantage is the space-saving design when not in use and easy handling. The length, height, slope, and trajectory of the path can be adjusted.
It is very versatile and can be used for processes beyond just loading and unloading. Solutions with both standard conveyor rollers and cladded rollers are commonly used.
Our references
Areas of application
FAQs
A flexible conveyor is a collapsible, extendable conveyor for transporting individual items such as cartons or boxes. It is particularly suitable for loading and unloading and for warehouse processes where the conveyor route needs to be temporarily extended or adapted. When collapsed it takes up very little space and is easy to move, so it can be deployed wherever it is needed and stored away again after use.
The roller version is suitable for heavier and larger items with a flat base, while skate wheels handle smaller and irregular consignments better. We supply flexible conveyors with either standard rollers or skate wheels depending on the goods being transported. We select the appropriate design together with you based on the type, weight and dimensions of the handled items. A height-adjustable conveyor also makes it possible to fine-tune the incline and height so that goods transfer smoothly to the next section of the line.
A height-adjustable flexible conveyor is useful wherever the connection height, route incline or section length changes. Typical applications include unloading trucks and containers, where the vehicle floor height changes progressively, or temporarily connecting workstations. Thanks to its adjustable length, height, incline and path, it can be adapted to the specific operation. After the work is finished, the conveyor can be collapsed to free the area for other activities.
The load capacity and throughput of a flexible conveyor depend on the specific design and the requirements of your operation. A typical value is around 30 to 50 kg/m. Because it is a gravity conveyor, goods are moved by the slope of the route, which also determines the transport rate. We design the specific parameters according to the weight and dimensions of the transported items and the environment in which the conveyor will operate. Everything is adjusted so that the solution matches real operating conditions.
Yes, we design flexible conveyors to connect to your existing equipment and processes. At LOGSYS, we handle design, manufacturing, installation and service, so the conveyor is adapted to the dimensions, height and connection to the surrounding sections. It often serves as a flexible link between fixed parts of a line or as an accessory for loading and unloading. If you need a broader solution, we can connect it to other conveyor types from our range; see the overview of conveyors for intralogistics.
