Airports
References
Conveyor systems for airports ensure fast and reliable baggage handling, from arrival to check-in. Thanks to their efficient design and high capacity, they contribute to the smooth and seamless operation of the airport terminal. This process optimization not only speeds up the entire airport process but also ensures passenger satisfaction and minimizes delays, which is crucial for the efficient functioning of the airport.
Our conveyor systems are designed to handle the high operational demands of the airport environment while providing maximum reliability when handling various types of baggage. With their help, the check-in process becomes fast, safe, and flawlessly executed, which leads to higher efficiency and quality of the entire airport service.
Baggage handling conveyors significantly improve operational processes and facilitate their inspection. We design them custom-made according to the required transport capacity, the number of Check-In desks, the level of X-ray screening, and the building's structural layout.
Departure section: includes conveyors at Check-In desks (weighing and length measurement), collector belt conveyors (sequencing via software windows), standard belt conveyors, baggage sorting systems (verti-sorter, diverter arm, reversing diverter), and collection conveyors (belt, roller, carousel).

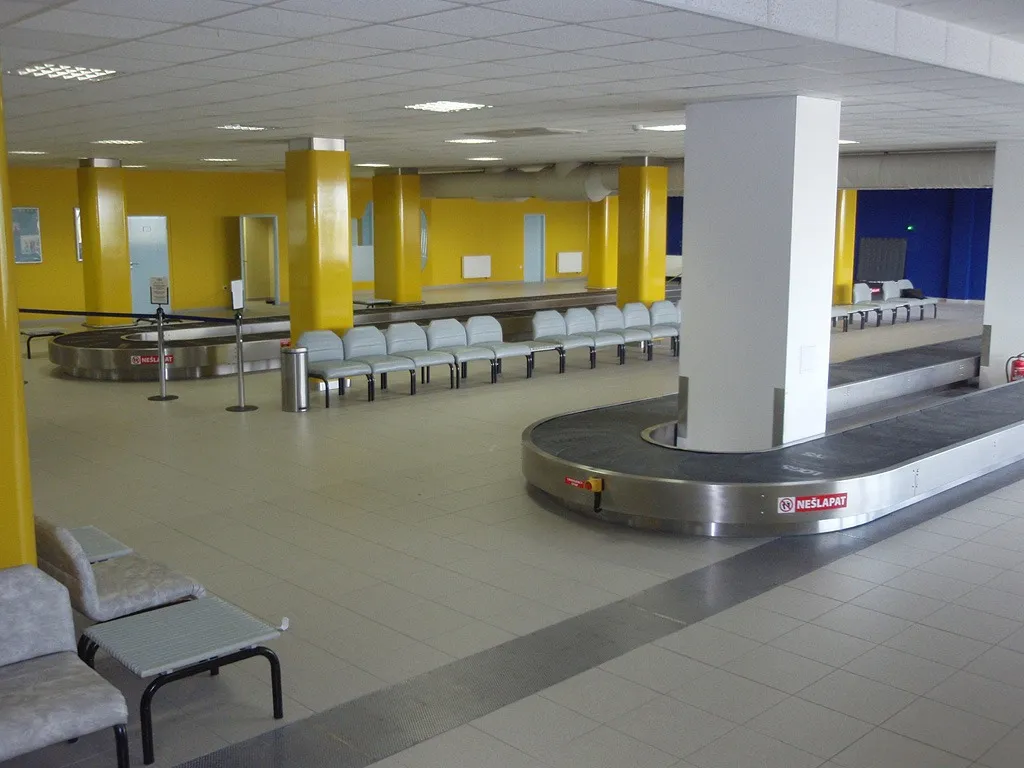

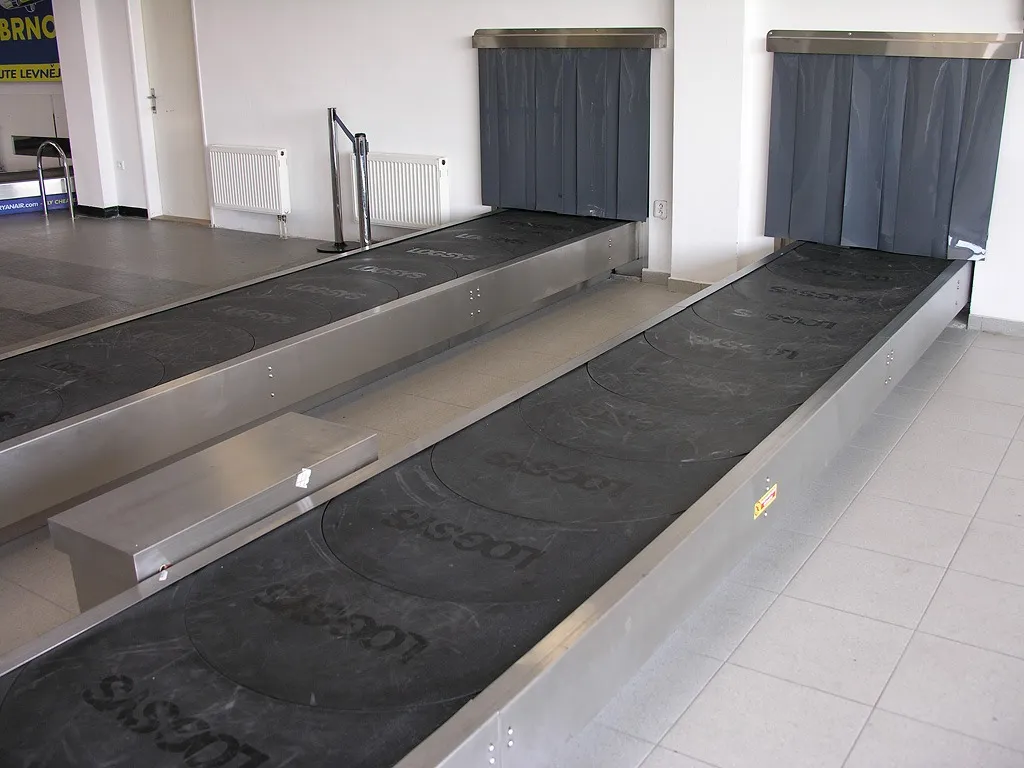

Arrival section: includes loading conveyors (belt, roller), belt conveyors, and a carousel conveyor.
Selected References
Photo Gallery
Brno Airport
FAQ
Airport conveyor systems handle baggage from check-in through sorting to reclaim on arrival. They cover the departure area with conveyors at check-in counters, collection and belt conveyors and sorting systems, as well as the arrivals area with loading, belt and carousel conveyors. The goal is smooth terminal operation, faster baggage handling and the lowest possible level of delays.
Baggage sorting directs each bag from check-in to the correct departure conveyor or to X-ray screening. LOGSYS uses sorting elements such as a verti-sorter, diverter arm and reversing switch, which automatically divert baggage according to its destination. These are followed by belt, roller and carousel take-away conveyors. The specific combination of sorting elements depends on the required capacity and terminal layout. More information can be found in the baggage sorting section.
For departures, we supply conveyors at check-in counters with weighing and measuring, collecting belt conveyors with software windows, standard belt conveyors, sorting systems and belt, roller and carousel take-away conveyors. For arrivals, we supply belt and roller loading conveyors as well as belt and carousel conveyors for passenger baggage reclaim. We adapt the entire range of conveyors to the operation of the specific terminal.
We design baggage-handling capacity and speed according to the specific solution and terminal requirements. The system is customized based on the required transport capacity, number of check-in counters, level of X-ray screening and the construction drawing. We determine the exact parameters after analysing the operation and the expected peak number of checked bags so that the system matches the actual load.
Yes, we design baggage-handling systems to order and adapt them to the terminal layout. We work from the required transport capacity, number of check-in counters, level of X-ray screening and construction drawing, so the solution fits the existing space and downstream processes. As a Czech manufacturer and integrator, we provide design, manufacturing, installation and service, simplifying coordination of the entire project and subsequent maintenance.
